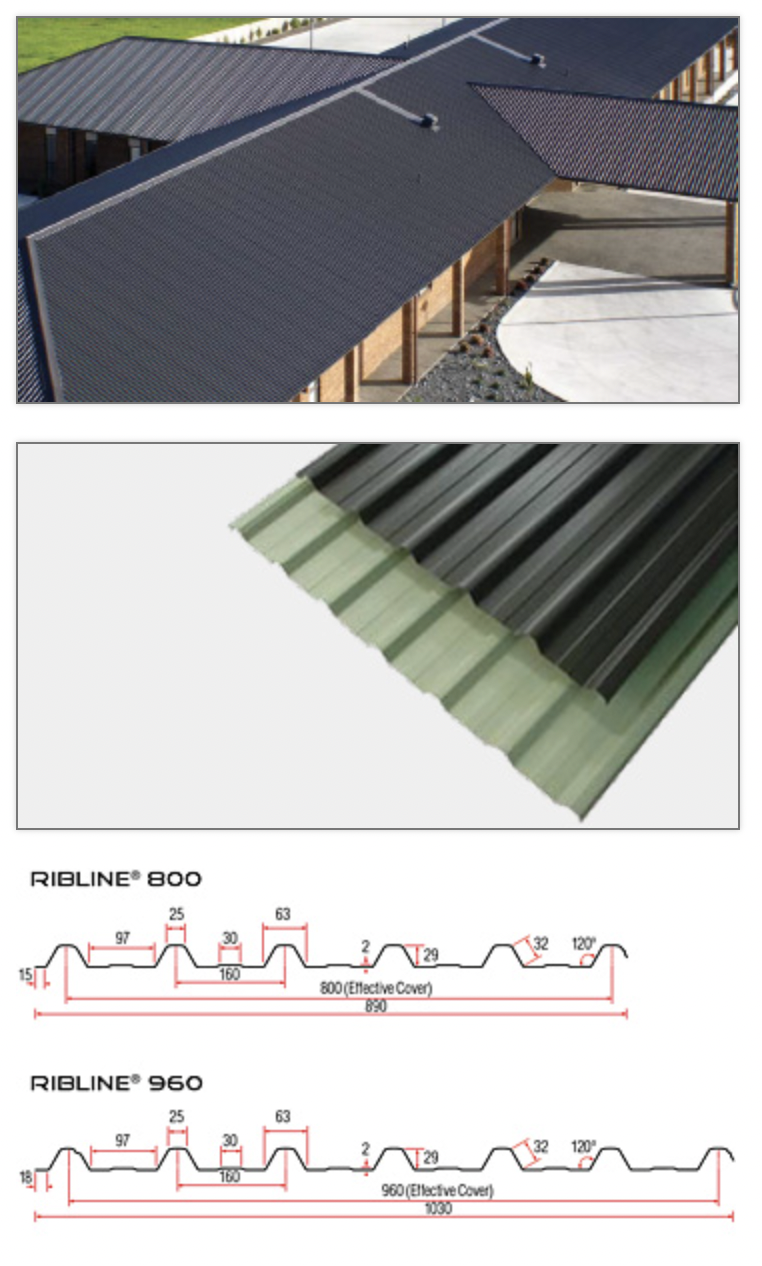

RIBlINE
Whilst aesthetics and overall appearance remain a powerful motivating factor during selection of roof type, of equal importance is the ability of the roofing product to prevent water leakage through the lapping edge, particularly on lower pitched roofs.Ribline®’s unique capillary lapping edge enhances performance and offers additional security against water ingress. With 800mm sheet coverage, Ribline® offers the consumer, less laps, reduction in the number of fasteners, quicker installation and ultimately, reduced costs. Ribline® can also be supplied as an extra-wide 960mm coverage sheet.
Applications
Residential roofing and cladding
Industrial and commercial roofing and cladding
Rural and lifestyle roofing and cladding
Drape/spring curving
Fencing
Roof Pitch
In accordance with E2/AS1 of the NZ Building Code, the minimum pitch for Ribline® is 3°. For roof lengths greater than 18m, contact Roofing Industries
Materials
Zincalume® Steel: 0.40 or 0.55mm BMT, AZ150 (150gm/ m2) G550 Mpa Yield Stress
Galvanised Steel: 0.40 or 0.55mm BMT, Z450 (450gm/ m2) G550 Mpa Yield Stress
Pre-painted Colorcote or Colorsteel® over Zincalume® 0.40 or 0.55mm BMT, AZ150 (150gm/m2), G550 Mpa Yield Stress
Pre-painted Colorcote or Colorsteel® over Galvanised Steel: 0.40 or 0.55mm BMT ZM275 (275gm/m2) G550 Mpa Yield Stress 0.55mm BMT may be supplied as G300 Mpa Yield Stress
